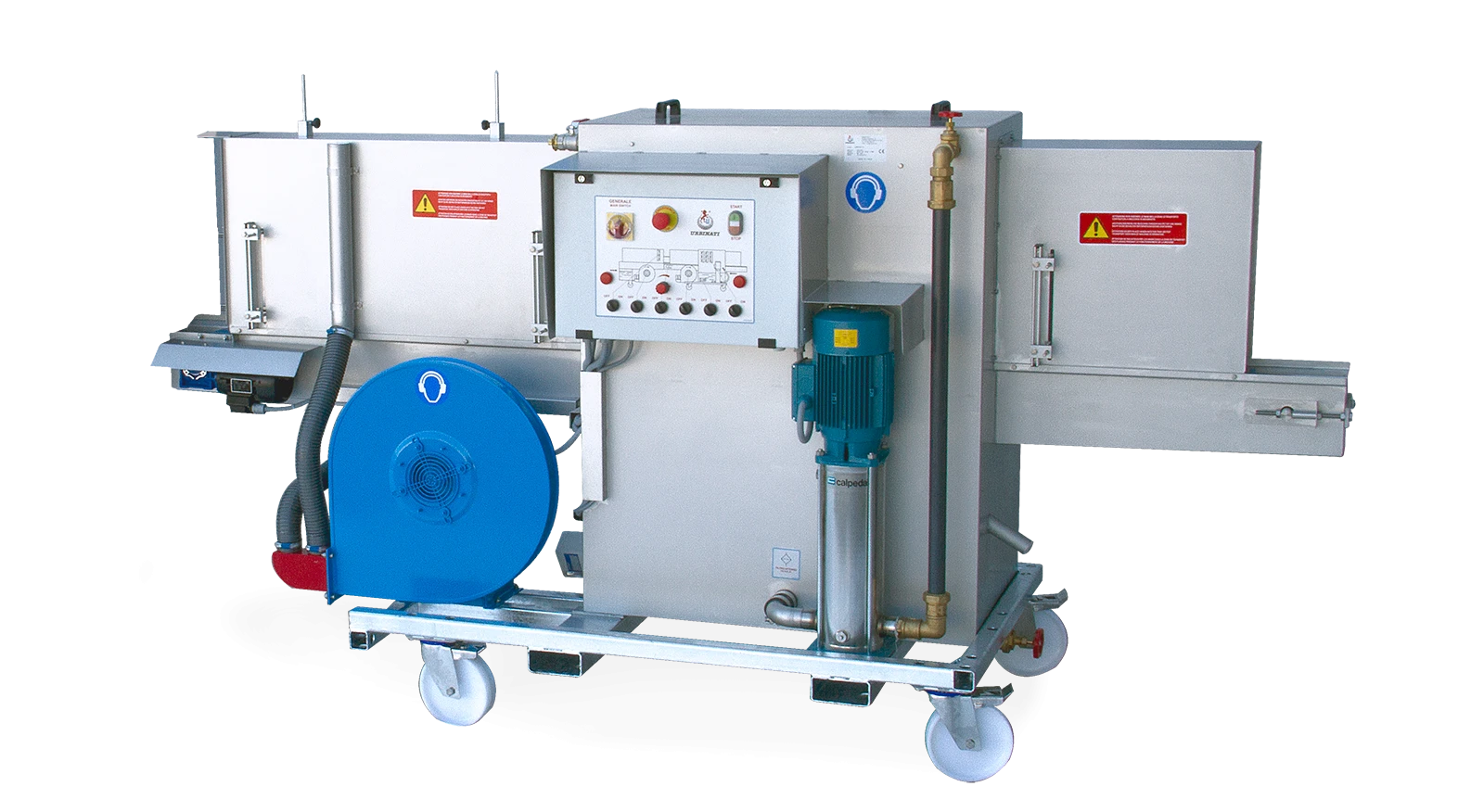

Urbinati LAV10 — Automatic Tray Washer

Urbinati LAV10 | Automatic Tray Washer — Up to 600 Trays/Hour

The LAV10 is an automatic tray and container washer and disinfecting machine designed for professional use in greenhouse and nursery production. The machine automatically washes and disinfects trays and containers of various shapes and sizes. Once positioned at the entrance, containers advance through the machine automatically by means of a support belt running along the bottom.

In the washing chamber, containers are sprayed with high-pressure water jets delivered through easily removable nozzles, which can be quickly detached for cleaning or replacement. After washing, the containers can pass through an additional treatment to eliminate pathogenic factors: either chemical treatment with suitably diluted antibacterial substances, or UV lamp treatment capable of eliminating light-sensitive bacteria. In both cases, the standard model simply needs to be extended with the treatment tunnel.

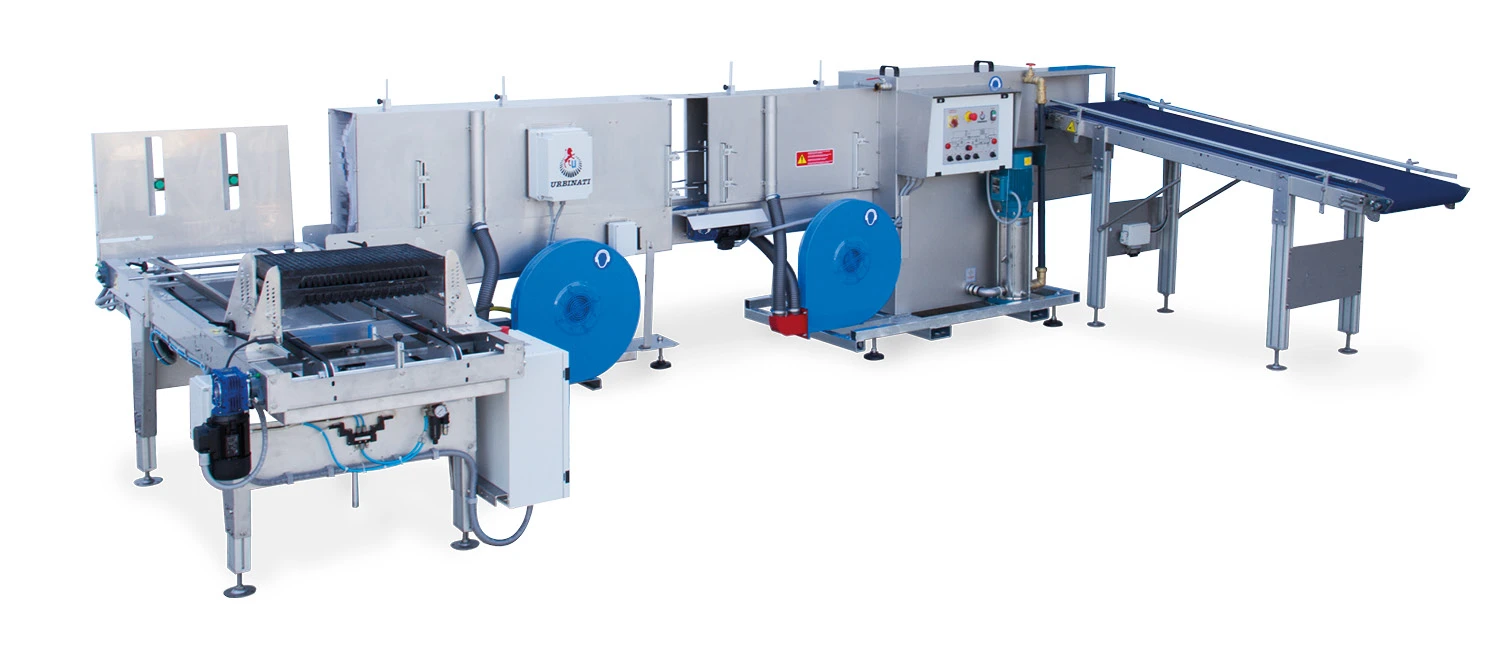

When connected to an input feed belt and an output accumulation belt, the LAV10 can be transformed into a complete and autonomous WASHING LINE, delivering outstanding results in terms of production output and efficiency.

Key technical features:

• High-pressure washing with easily removable nozzles
• Rinsing with fixed nozzles
• Frame and structure in AISI 304 stainless steel
• Hot-galvanised steel base plate
• Water filter with extractable drawer
• Stainless steel vertical multi-stage pump 3.7 kW
• Fan for tray drainage 2.2 kW
• Water level control with float
• Overflow discharge pipe
• Top plexiglass door for nozzle inspection
• Tank capacity: 150 litres

Optional accessories:

• Exit table for water draining
• Wheels kit — 4 turning stainless steel wheels, diameter 200 mm
• Water heating with electric resistance 8 kW

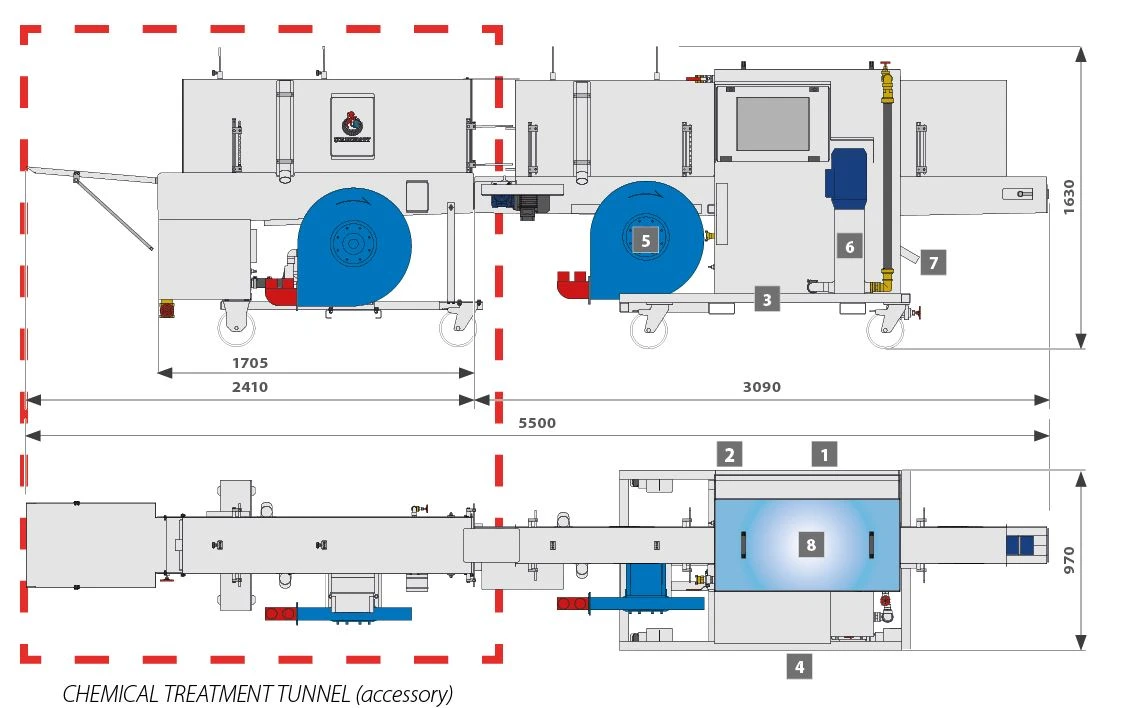

• Tunnel for chemical treatment with antibacterial substances
• Tunnel for UV lamp disinfection with 2 UV lamps
• Input feed belt and output accumulation belt
• Additional fan for extra tray drainage

TERMOLAT Ltd. is the official representative of Urbinati Srl in the Baltic region and will be happy to help you select the most suitable equipment for your business needs.
